AR Blue Clean Pro, RCA3-PRO, Pressure washer, Rolling & Wall Mount Cart, and accessories Kit
- Brand
- Pro Line
- SKU:
- RCA3-PRO
- UPC:
- 192216985391
- Availability:
- Usually Ships within 72hrs.
- Width:
- 30.00 (in)
- Height:
- 32.00 (in)
- Depth:
- 15.00 (in)
AR Blue Clean RCA3-PRO, PRESSURE WASHER, ROLLING & WALL MOUNT CART
The RCA3-PRO offers both a mounted and mobile solution for all you professionals and enthusiasts out there. Whether you are a detailer that wants a mobile truck solution, a shop needing a machine cleaning option, or an enthusiast looking to improve your garage or shop vision, look no further than the RCA3-PRO.

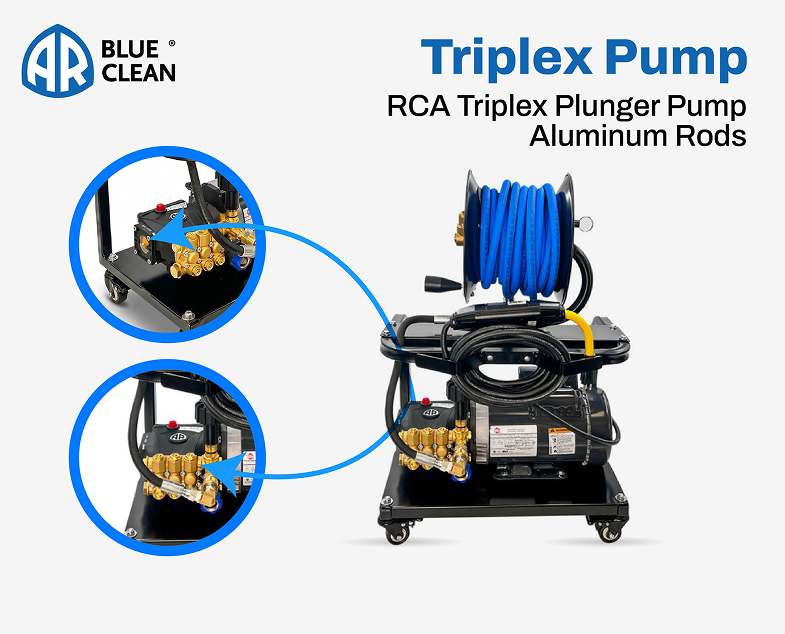

The AR Blue Clean RCA3-PRO pressure washer is a serious machine and not for the faint of heart. This cart-style pressure washer is built with work in mind, highlighting the RCA3G25E-F8 residential triplex pump that features frictionless ceramic pistons to maximize power and functionality. The RCA3G25E-F8 features a Total stop System (TSS) for prolonged life, and is constructed with a forged brass pump head designed to clean in any environment. This hardy pump is dialed in to produce up to 1100 psi, at 3 gpm, and is assembled with cold water seals to withstand water temperatures up to 140℉.

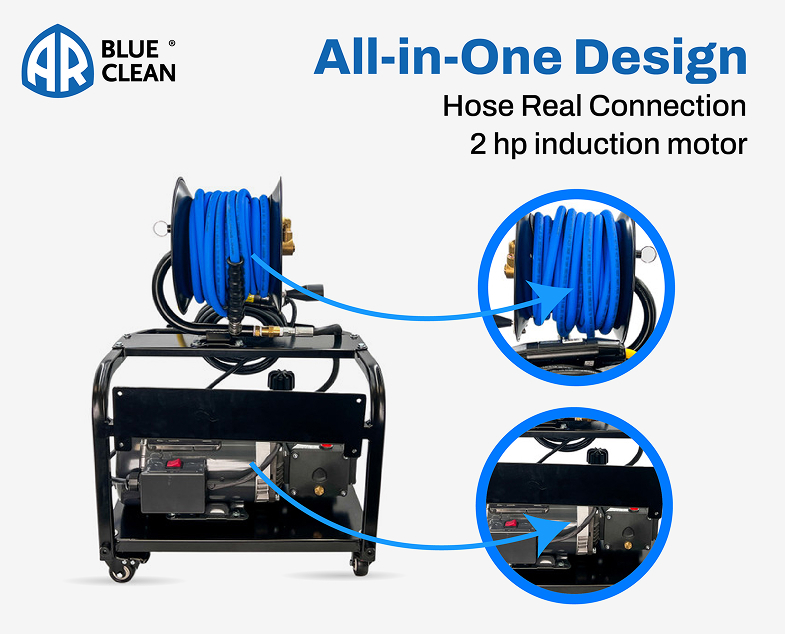

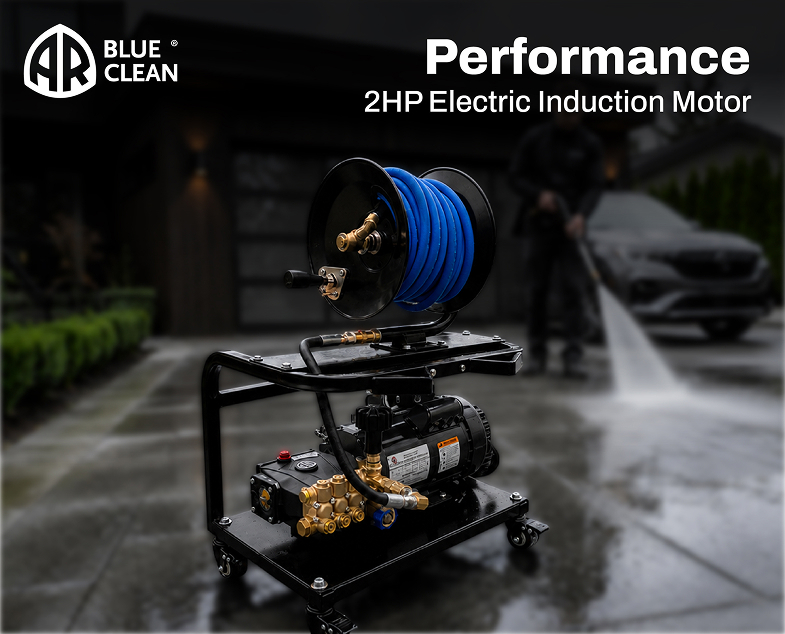

The RCA3G25E-F8 pump is direct shaft-driven and powered by a 2 HP electric motor, guaranteeing premium efficient performance and ultimate reliability. The RCA3-PRO’s robust and high-quality design makes it perfect for a wide range of cleaning applications and settings. Built with power in mind producing 2 horsepower, @1725 RPM, and operates on a range of 115 Volts.

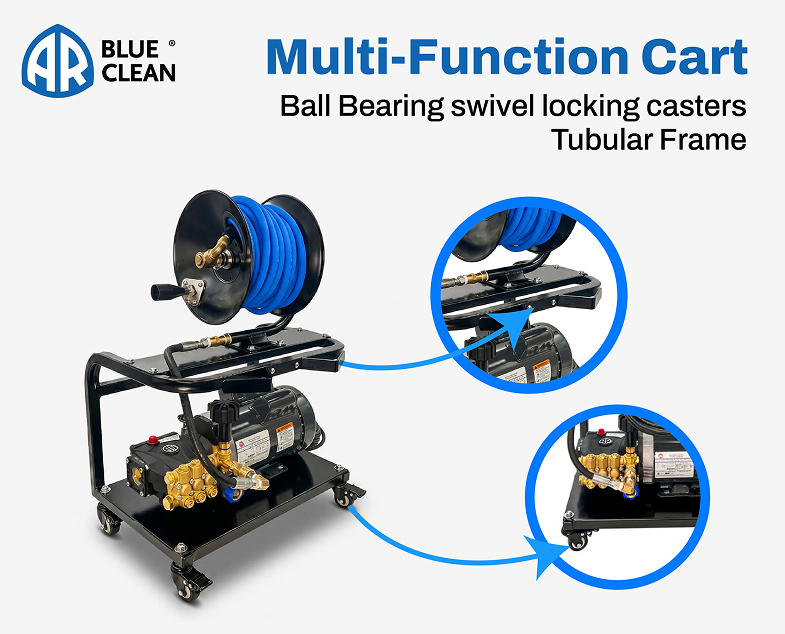

The RCA3-PRO is built to be rugged, versatile, and mobile as needed. The steel frame is a powder-coated square tubular frame featuring a top-mounted built-in 50’ hose reel, removable storage bracket for extension cords or accessories, and 4 ball-bearing swivel casters for ease of shop mobility. Above all, the cart features a precision-bent steel wall bracket so you can mount the unit on a wall, in a shop, or in your mobile detailing van, should you have the appropriate power. The bracket is useful for both securing the pressure washer unit in place as well as acting as securement mount in your mobile unit.

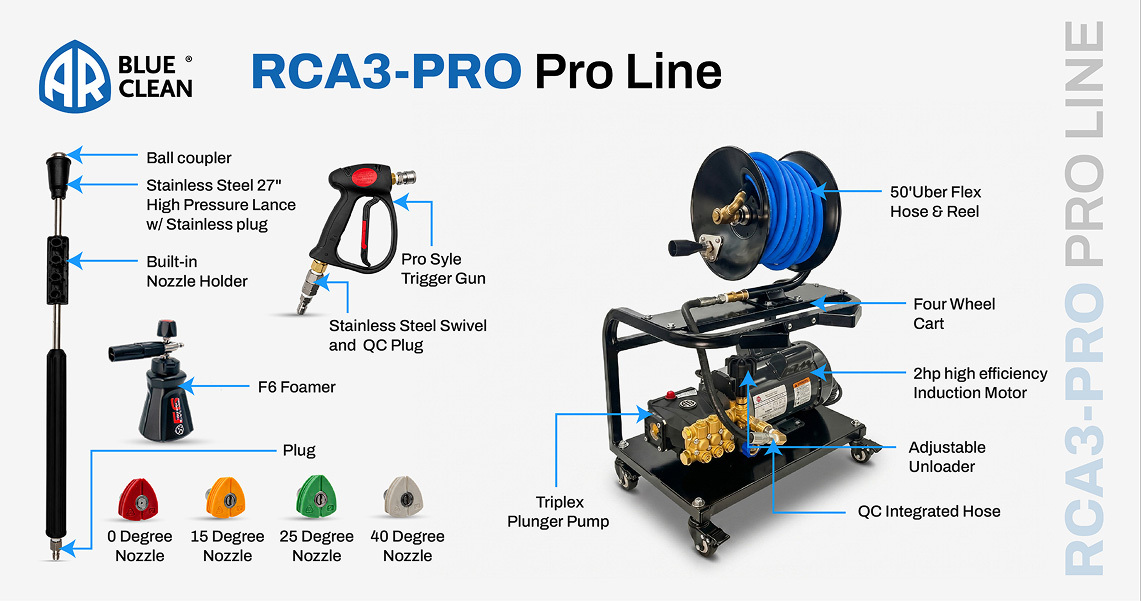

This Kit Features:
- RCA3G25E-F8 Triplex Pump: Forged Brass Pump Head for reduced wear in IO water applications, this pump is finely tuned for max effeciency to 1100 PSI at 2.9 GPM with the corresponding 2 ebhp.
- AR 533-EC128 Electric Motor: Electric motor delivering 2 ebhp, 1725 RPM at 115 volts
- Four Wheel Cart: Featuring 4 ballbearing casters (2 locking casters, 2 standard casters), Powder Coated Sqare Tubular frame and wall bracket, Bolt on 50' Hose reel
- MV925N Trigger Gun: Produces a max of 4,500 PSI and 8 GPM, built with a contoured grip for superior control.
- Quick Connect Foam Cannon: (PWPF22.1.7) 1.7mm nozzle, Can hold up to 34 oz of detergent, features a detergent adjustment knob and variable spray Nozzle
- SF40-27 Lance: 5075 max psi, and a max temperature of 300℉. Stretches to 27 inches long to reach tough areas when cleaning.
- NZMQC4P-055 Quick Connect Nozzles: Includes a 0ᵒ, 15ᵒ, 25ᵒ, and 40ᵒ nozzles. Lower degree nozzles are ideal for hard precise cleaning, high degree nozzles are perfect general cleaning over large areas.
- AR646201121 50’ Uber Flex Hose: Withstands up to 4,000 PSI, and 140℉. 50 foot kink free Uber Flex hose allow users to move freely when cleaning without tangling.
Product Features and Accessories
Manuals
Sorry, we couldn't find any manuals for this product at this time. Please check back later.
Our warranty is from the date of purchase to the original purchaser and cannot be transferred.
The warranty covers manufacturer or workmanship defects at the time of sale that may develop under normal operational conditions. Our warranty is limited to repair or replacement only at the option of the manufacturer. The warranty does not apply to misuse, damage caused by non-AR North America accessories and normal wear items such as but not limited to: seals / packing, O-rings and valves.
Reasonable care must be used in conformity with operation and maintenance instructions in the owners manual. Failure to follow these instructions will void the warranty.
Blue Clean and Blue MAXX Consumer (non-commercial) pressure washer:
- Warranty period of 2 years for pressure washer and 1 year for the accessories. Wear items are not covered under warranty.
- This warranty will be void if the product is used in any rental or commercial application.
- In the event a warranty evaluation is needed, the consumer will be responsible for freight costs.
Blue Clean Pro (commercial) pressure washers:
- AR600 Series Electric Pressure Washers come with a 1 Year Commercial Warranty.
- AR600 Series Electric Pressure Washer Accessories come with a 90 Day Warranty.
- Warranty is to the original purchaser and is non-transferrable.
- Warranty Claim may require product inspection.
Warranty Conditions:
- Warranty does not apply to normal wear (such as but not limited to: seals/ packings, valves, plungers and sealing O-rings), freight damage, freezing damage.
- Warranty does not apply to misuse when pump or accessories are altered operated above recommended speeds, pressures, or temperatures.
- Warranty does not apply to damage caused by aftermarket accessories not included with original unit.
- Warranty is void when failure to follow recommended operating and maintenance procedures, or failure to use OEM replacement parts.
Warranty is void when pump is damaged by:
- The use of caustic (corrosive) liquids
- Pump was operated under abrasive or corrosive environments where conditions could cause pump cavitation.
Liability of manufacturer:
- Warranty is limited to repair or replacement of parts only.
- Warranty Products must be inspected by the manufacturer.
Returned Product will be Repaired or Replaced Free of Charge if found to be defective and subject to warranty. After a completed inspection by the manufacturer, warranty is granted/ denied at the sole discretion of the manufacturer when such products are found to be of original defect or workmanship at the time it was shipped from factory.
This warranty is in lieu of all other warranties, expressed or implied, including any warranty of merchantability of any and all other obligations or liabilities on the part of the manufacturers or equipment.
Customer Return Liability:
-
- Pumps and Accessories must have a Return RMA#
- Please keep the receipt as it will be required when submitting a warranty claim. Without the receipt the warranty claim cannot be processed.
- Pumps must be shipped back with Shipping plug
- Shipments without RMA# will be denied
- Under no circumstance will the manufacture bare
any responsibility for loss of unit, loss of time or
inconvenience in any manner.
- Pumps and Accessories must have a Return RMA#
- Customer is responsible for freight costs to return product for warranty
evaluation. - The nozzle(s) being used must be returned with the pump unit to be
considered for warranty. - A shipping plug (supplied) must be installed in the pump before
shipping to prevent oil seepage. Failure to secure the plug will result in a
maintenance charge. - The manufacturer is not liable for freight damage, insurance, labor, or any
consequential damages incurred as a result of defective product. - If returned product is found non-warrantable, associated repair costs
and return freight are the responsibility of the customer.
Pressure Washer Parts and Accessories (Purchased Individually):
- Parts and Accessories purchased individually hold a 90-day warranty period for any manufacturer or workmanship defects from date of sale.
Please contact AR Blue Clean customer service with any questions or concerns.
Phone: 1-866-235-5112
Email: info@arblueclean.com
- PumpTrigger Gun:
- RCA3G25E-F8
- Motor (ebhp):
- 2 Horse Power
- Connection:
- M22 Quick Connect
- Set Pressure (PSI):
- 1100
- Material:
- Polymer, Aluminum, Brass, Stainless Steel
- High Pressure Hose:
- 50' Uber Flex Hose, AR646201121
- Hose Diameter:
- 5/16"
- Hose Thread:
- 3/8" Male
- Hose Reel:
- 5701
- Trigger Gun:
- MV925N
- Lance:
- SF40-27
- Nozzle Kit:
- #5.5 -NZMQC4P-055 Includes 0° - NZM00055QC, 15° - NZM15055QC, 25° - NZM25055QC, 40° - NZM40055QC,
- Max (GPM):
- 3.0
- Rated (GPM):
- 2.9
- Wall Mount Plate:
- Included
- Wall Mount Plate Dimentions:
- 17" W x 4.75" T
- Wall Mount Plate Mounting Holes:
- 16"OC W, and 3.75"OC T (see image)
- Total Stop System (TSS):
- Yes
